The HP0180WB(L2)-25 24V6A battery charger is specially engineered for electric wheelchairs, mobility scooters, and medical mobility devices. Supporting both lead acid and lithium-ion batteries, this charger ensures reliable and efficient charging performance. Designed in compliance with ISO-7176 and EN60601 standards, it guarantees the highest level of safety for healthcare and rehabilitation settings. The charger features intelligent charging modes, over-voltage and over-current protection, and silent cooling. Its compact and durable structure makes it easy to integrate into various wheelchair charging systems. Whether used in home care or clinical applications, the HP0180Wb 24V6A charger offers trusted performance and compatibility with a wide range of mobility devices.

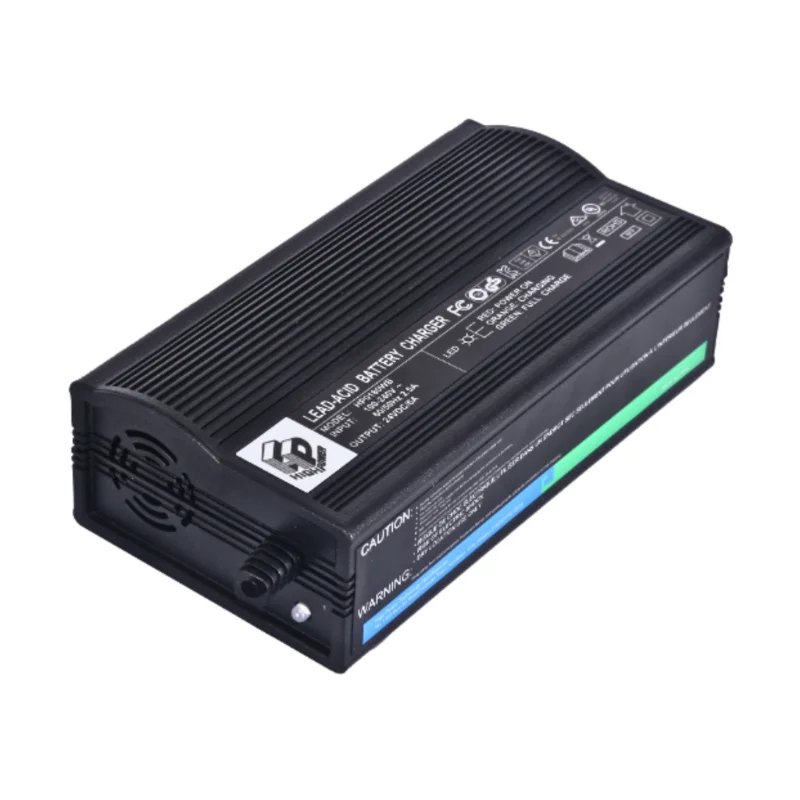

HP0180WB(L2)-25 24V6A Lead Acid/Li-ion Wheelchair Battery Charger with ISO-7176 & EN60601 Certification
Categories HP Charger, HP0180W, ISO 7176-25 Battery charger for wheelchairs, Products
Model | HP0180WB(L2)-25 |
Input Voltage | 100-240V |
Output Voltage | 24V |
Output Current | 6A |
Dimension L*W*H(mm) | 185*93*55 |
N.W.(kg) | 0.81kg |
Safety Certification | TUV-GS, UKCA,cTUVus,CE,EN60601,ISO7176 |
Case Material | Plastics |
Battery Type | Lead-acid(Li-ion) |
The HP0180Wb(L2)-25 24V6A charger is a reliable power supply solution for electric wheelchairs and mobility scooters. Compatible with both lead acid and lithium-ion batteries, this medical-grade charger meets ISO-7176 and EN60601 standards for enhanced safety and performance. Its compact design and advanced protection features make it ideal for use in rehabilitation and healthcare environments.
Specifications
HP0180WB(L2)-25 24V 6A Lead-Acid/Lithium Battery Charger
Model No. | HP0180WB(L2)-25-6 (24V 6A) |
Input Voltage | AC 100 – 240V (50/60Hz) |
Output Current | 6.0A ± 0.5A |
Output Voltage | 29.4V ± 0.3V |
Pre-Charge Current | 1.0A ± 0.3A |
Efficiency | ≥ 80% |
Constant Current Fast Charge | 21V – 28V ± 1V / 6A |
Protections | • Short Circuit – Yes • Over Current – Stop Charging • Over Voltage – Stop Charging when > Vmax × 1.05 • Reverse Polarity – Stop Charging • Over Charge – Stop Charging • Under Voltage – Stop Charging |
Operating Temperature | 0℃ ~ 40℃ |
Operating Humidity | 20% ~ 85% |
Storage Temperature | -20℃ ~ 80℃ |
Operating Height | ≤ 2000M |
Dimensions | 185 × 93 × 55 mm |
Weight / Case | 0.81kg / Black Plastic |
LED Indication | • Power On: Red • Charging: Orange • Charged: Green |
Series Available | HP0180WB(L2)-25-5 (24V/5A), HP0180WB(L2)-25-6 (24V/6A) |
Certifications | TUV-GS, UKCA, cTUVus, CE, KC, SAA, FCC, PSE, EN60601, ISO7176 |
